Science communication is important in today's technologically advanced society. A good part of the adult community is not science saavy and lacks the background to make sense of rapidly changing technology. My blog attempts to help by publishing articles of general interest in an easy to read and understand format without using mathematics. I also give free lectures in community events - you can arrange these by writing to me.

Tuesday, 24 January 2017

Arctic Ocean - Soaring Temp., Loss of Ice Cover - How Much and Why? What is the Future? A Community Education Feature

Blog Index - Blogger Profile      Category - Climate Change

(please click on a slide to view its full page image -
 Esc to return to main text)

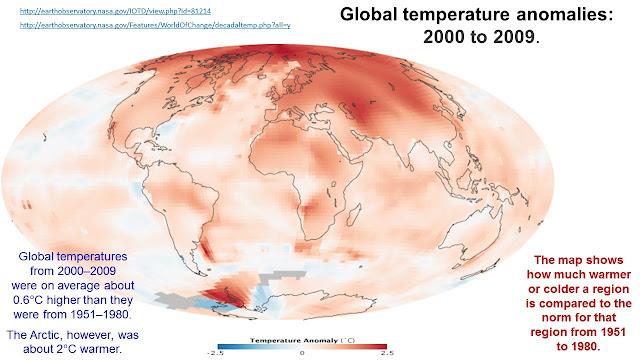

Global temperatures are rising - 2016 was the warmest year in two centuries.  But Arctic Ocean is warming much faster than the rest of the planet.  I want to look at the science behind this to understand why?  First the evidence:

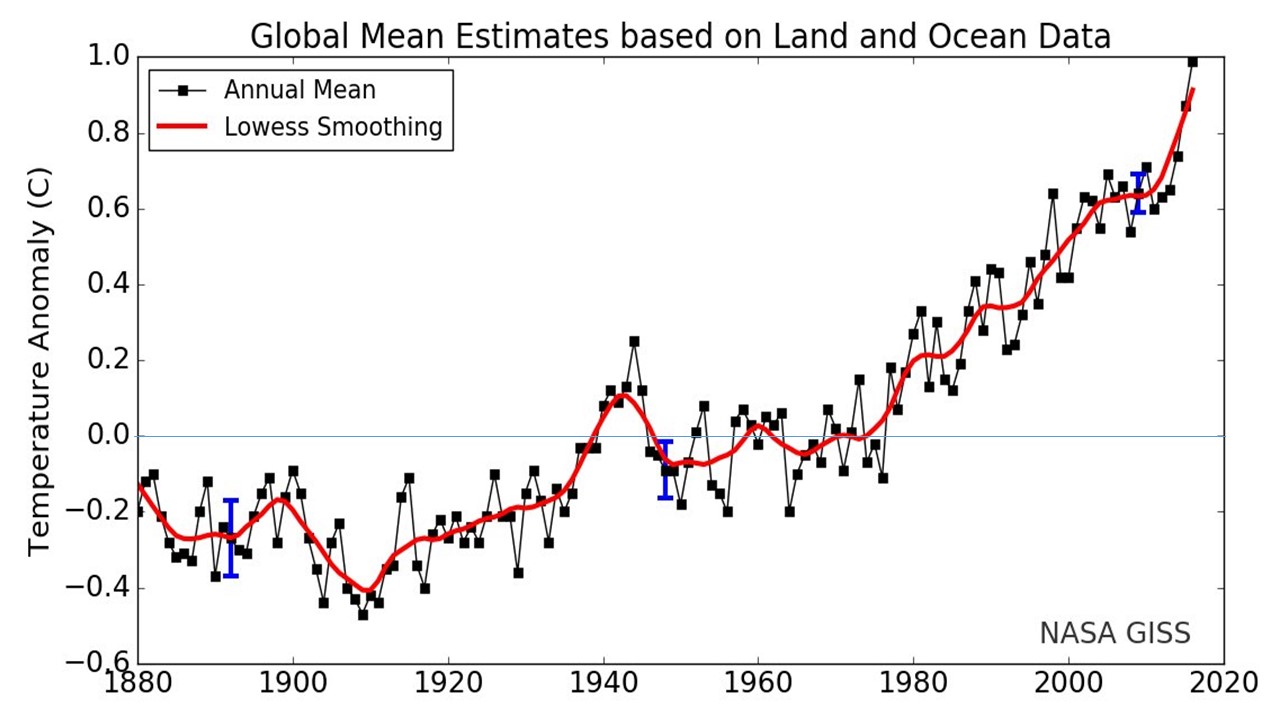

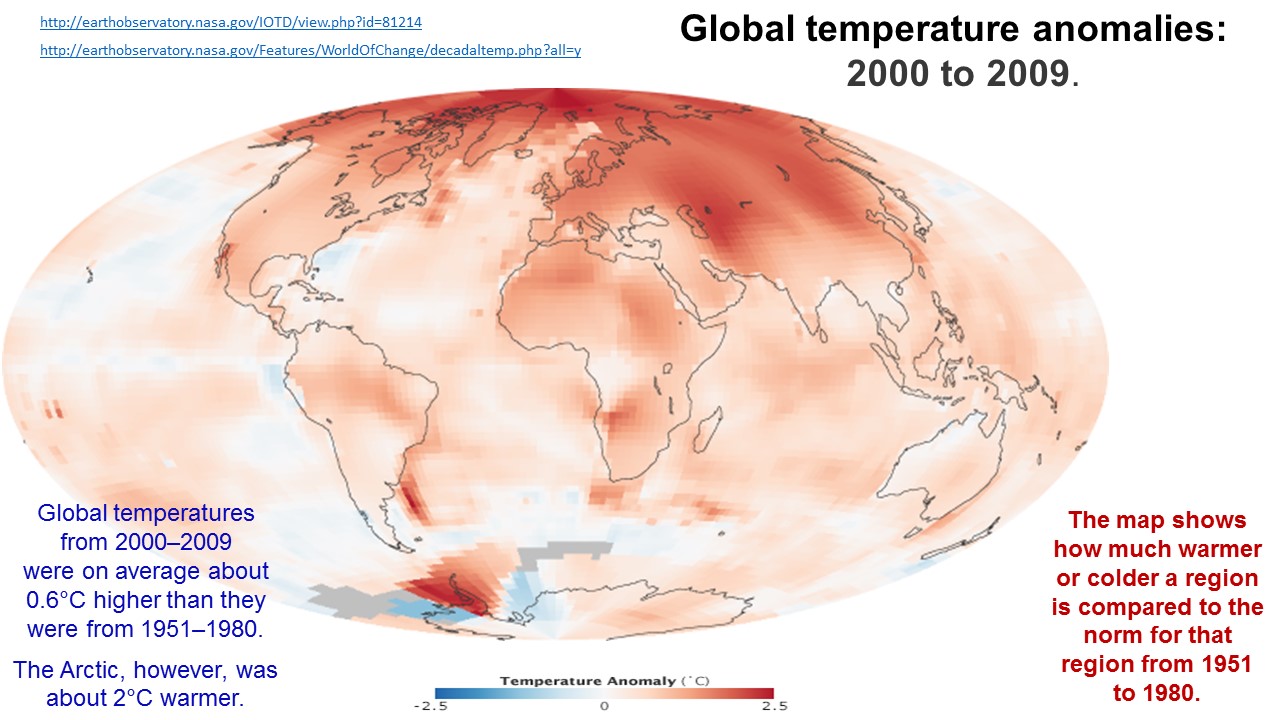

Global temperatures have risen over the past 200 years. The following slide shows the temperature trends.  Data is expressed as temperature anomaly - this simply means that the average temperature between the years 1950 and 1980 is taken as the reference temperature.  Temperatures in other years are measured relative to this reference value.

A couple of things to note in this graph:  Year to year variation (the weather) can be quite significant but the trend over a few decades (the climate) point to a warming world - about one degree hotter now than it was 100 years ago. Different regions of the globe warm at different rates - the equatorial regions have warmed slower than the Arctic Circle. Mean temperature change in Antarctica has been even less. This is shown in the next slide:

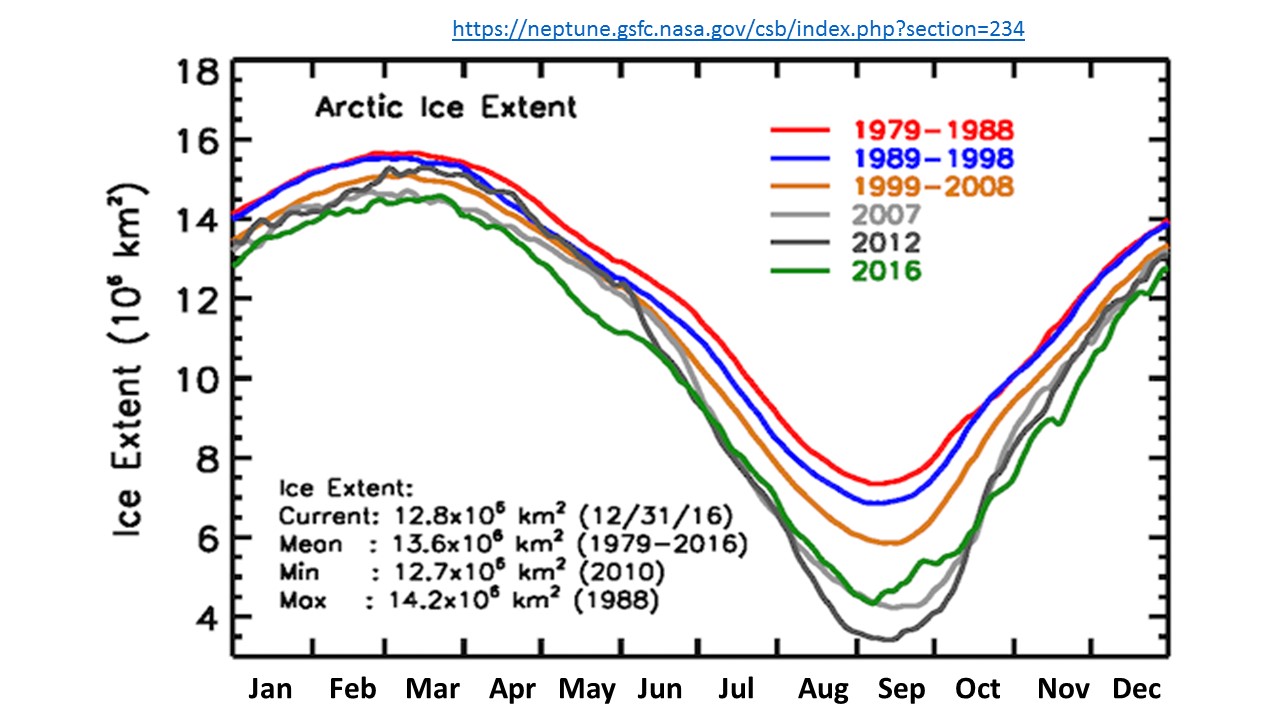

A consequence of warming is that the Arctic ice extent is diminishing - satellite data has mapped this accurately since 1978.  It is not only how many square kilometers the ice covers that matters, the thickness and age of the ice is also very important.  In the Arctic, temperatures rise above freezing during the summer months and some ice melts.  In the winter, water freezes to increase the amount of ice present. Snowfalls also deposit fresh snow during the cold months extending ice cover in the Arctic.  With age, snow compacts into harder ice that melts more slowly.  That is why the thickness of ice sheet is also important in determining the changes in the extent of ice cover (volume of ice) from the summer to the winter in any year. The loss of old compacted ice in the Arctic has been catastrophic:

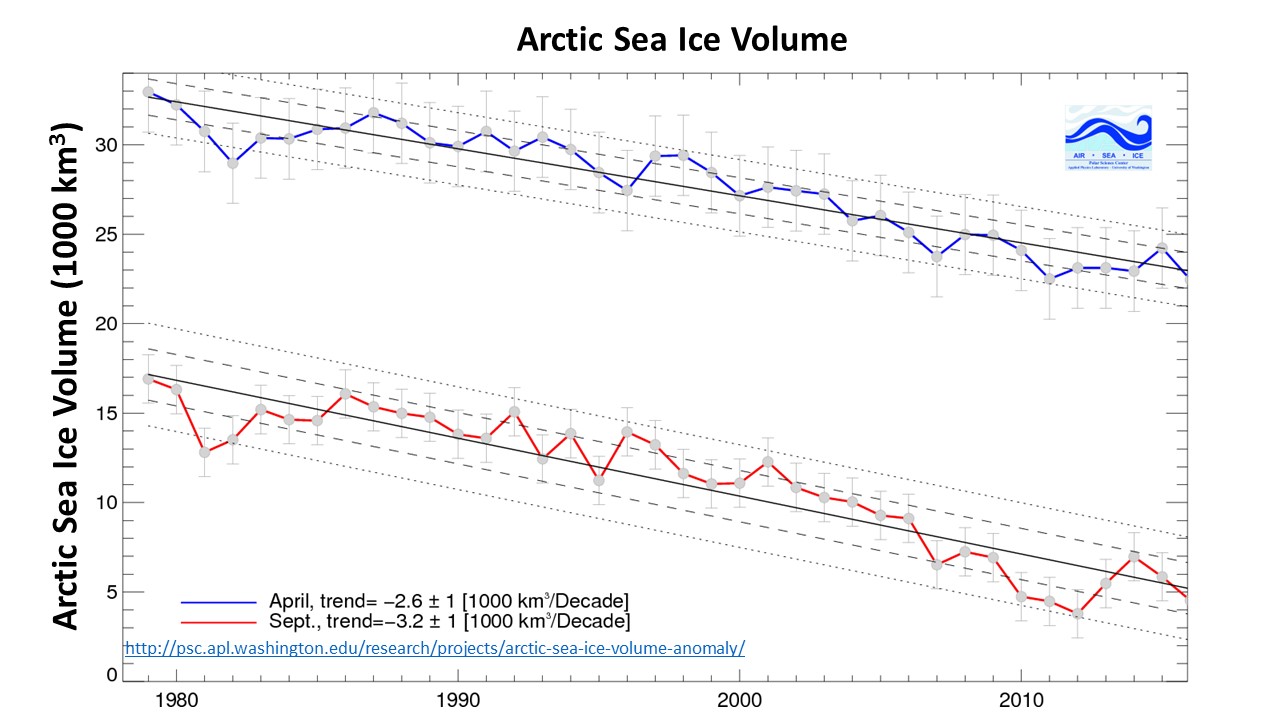

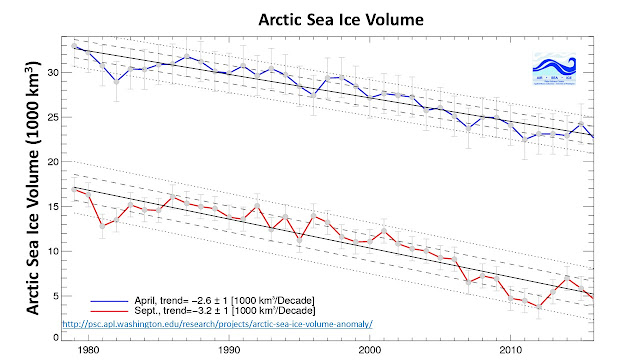

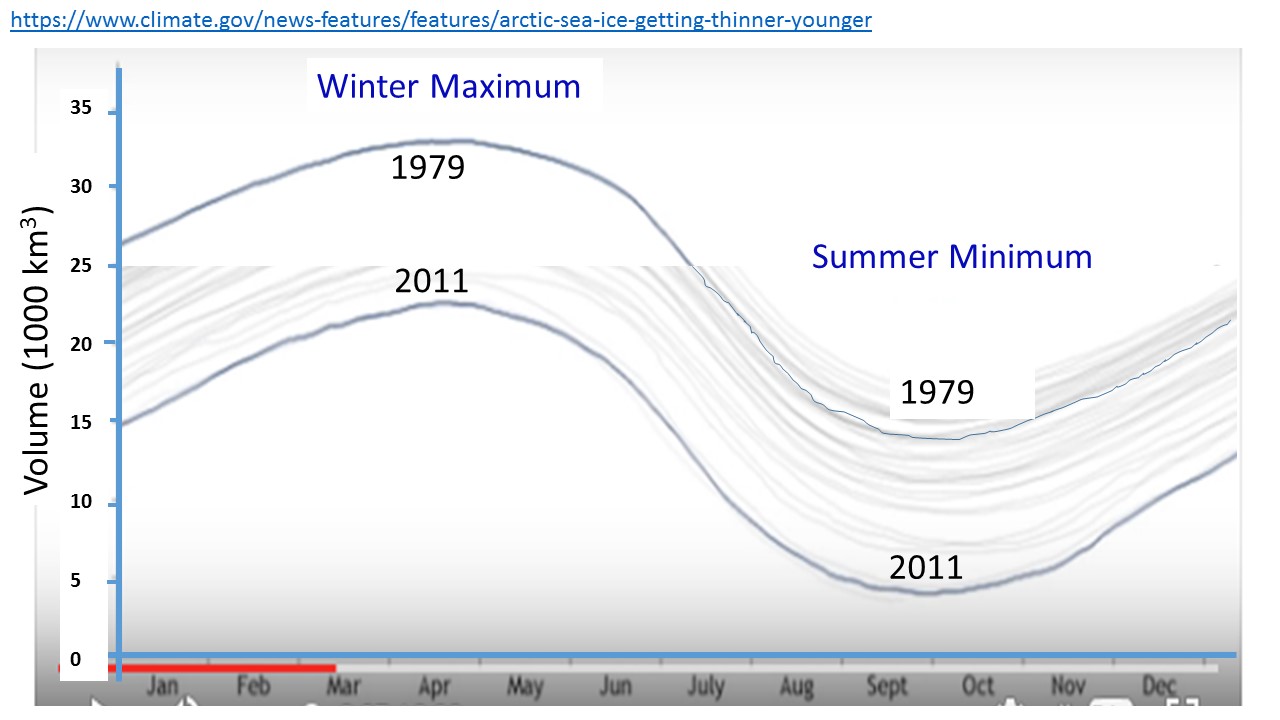

The volume of ice is obtained by multiplying its thickness by ice covered area and is a direct measure of total ice present. The following slides show how these parameters have been changing over the past 40 years.  The first slide shows the area covered in ice (old and new) and how this changes over the course of the year.  Other slides show the volume of ice and how it has changed since 1979.

          Changes in the Volume of Arctic Ice

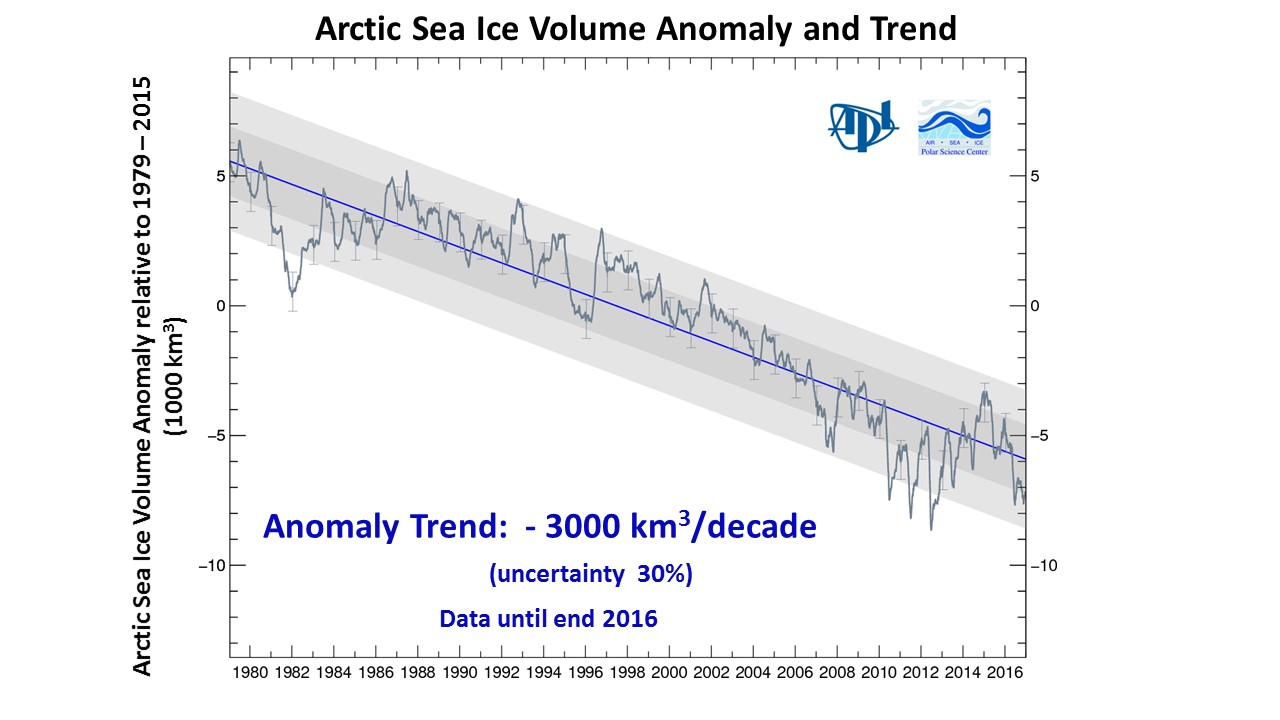

The graphs show that loss of Arctic sea ice has been equivalent to 3000 km3 per decade.  Put it another way, Arctic has lost over 12 trillion tons of ice since 1980!  (1 km3  ice weighs a billion tons). Molten ice converts into water - in the Arctic, the ice is floating on water already and melting does not affect the sea level. It is the ice that is located on solid ground - mainly on Greenland - that on melting, will add new water to the ocean and result in sea level rise.  The ice sheets in Greenland are relatively stable (although they have been losing ice at a rate of 140 billion tons per year).   However, parts of the glaciers that are sticking out beyond land are in contact with warmer sea water and are melting faster and also moving faster.  Loss of such glaciers will take away the blocking effect on the movement of glaciers further inland and will accelerate their journey to the sea. This is expected to happen in due course, but not imminently in the next few decades.

The energy required to melt such large quantities of ice is enormous and is supplied by the redistribution of energy that the Sun radiates on our planet. Vast quantities of solar power reaches Earth's surface - 164 W/m2 averaged over 24 hours. Equatorial regions receive most of the energy but this gets redistributed to polar regions by atmospheric and ocean currents.

As part of the natural annual cycle, about 16,000 km3 of ice is lost every year from April to September in the Arctic sea.
Taking the density of ice as 1000 kg/m3, the mass of ice lost per year is 16 x 1015 kg.
The latent heat of ice is 333 kJ/kg – it takes 333 kJ of energy to melt 1 kg of ice.
Energy required to melt the arctic ice is 333 kJ/kg x 16 x 1015 kg = 5.33 x 1021 Joules.
For comparison, the U.S. Energy consumption for 2009 was about 1 x 1020 J.  It takes about 50 times the annual U.S. energy consumption to melt the Arctic ice every year.

The loss of sea ice due to warming Arctic was estimated as 300 km3 per year which is equivalent to about 20% of ice lost annually between April and September - this means that a fifth of the ice lost in the summer is no longer replaced in the winter months. This corresponds to 1021 Joules of energy absorbed by the Arctic sea from the atmosphere and the ocean currents. This energy is stored in the water and goes to raise the temperature of the sea.

Let us look at the science to understand why the Arctic has been warming up faster than the rest of the Globe. Global climate is determined by a complex interaction of many processes.  To change a huge system over a period of time, some type of positive feedback mechanism is generally required - something that takes the system away from a condition of stability to a new condition (1, 2, 3).

In positive feedack, a small change in one parameter causes other changes which then amplify the magnitude of the original change.  This step is repeated to make the overall change significant.

I describe the processes that might be responsible for Arctic warming in the following.

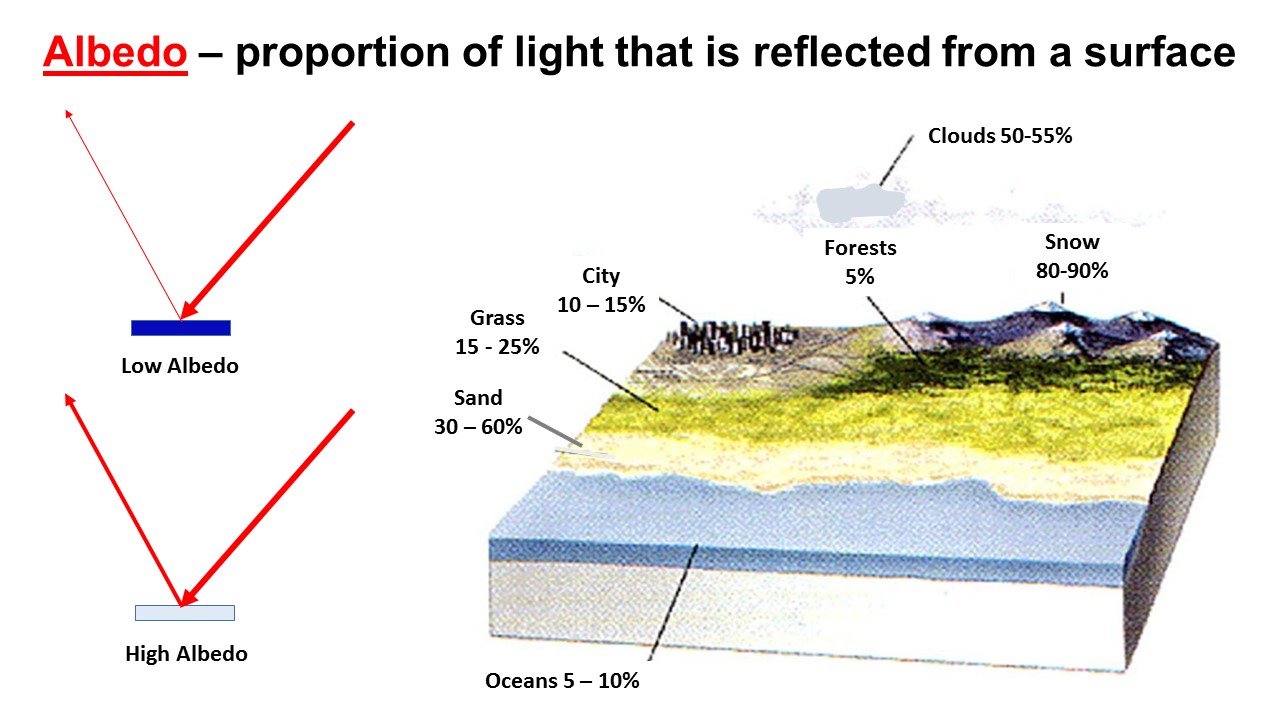

1.  The Albedo Effect: It is a classic example of positive feedback operating in the climate system.  See also.

Arctic ice is highly reflective and sends a good fraction (about 90%) of sun's energy back into space. On melting, ice is replaced by darker looking water which reflects less light (5 to 10%) and absorbs more of the incident energy causing additional warming. This warming then melts even more ice which then results in still greater absorption of solar energy. And so the cycle goes on, feeding on itself.

We can make a rough estimate of the extra heat energy that a change in albedo might deliver to the Arctic sea.
Melting of the ice causes a loss in albedo from 0.9 to 0.1 - a reduction of 0.8 (instead of 90%, only 10% of incident solar energy is reflected to space).
The amount of solar power falling per square meter in the northern latitudes is about 15% of that near the equator or 23 W/m2
The energy received by the sea over four summer months is  23 W/m2 X 0.8 X (4 X 30 X 24 X 3600) seconds = 2 X 108 J/m2
From measurements of ice extent (see slide), each summer 107 km2  (or 1013 m2) of arctic ice is changed to water.  Over this area, change in albedo traps 2 x 1021 J energy into the sea water.
This is within a factor of 2.5 of our estimate of the energy required to melt the ice in the summer months.  It seems to me that the albedo effect is responsible for the loss of a good part of sea ice in the Arctic.  With positive feedback, as more of the sea ice disappears, the albedo effect will cause even greater ice loss in successive years.

Burning of fossil fuels produces black soot which is carried by winds to the Arctic.  The soot in the atmosphere increases absorption of solar light further warming the region.  Some soot precipitates on the ice and darkens it.  Darkened ice has lower albedo - less of the sunlight is reflected, increasing warming.

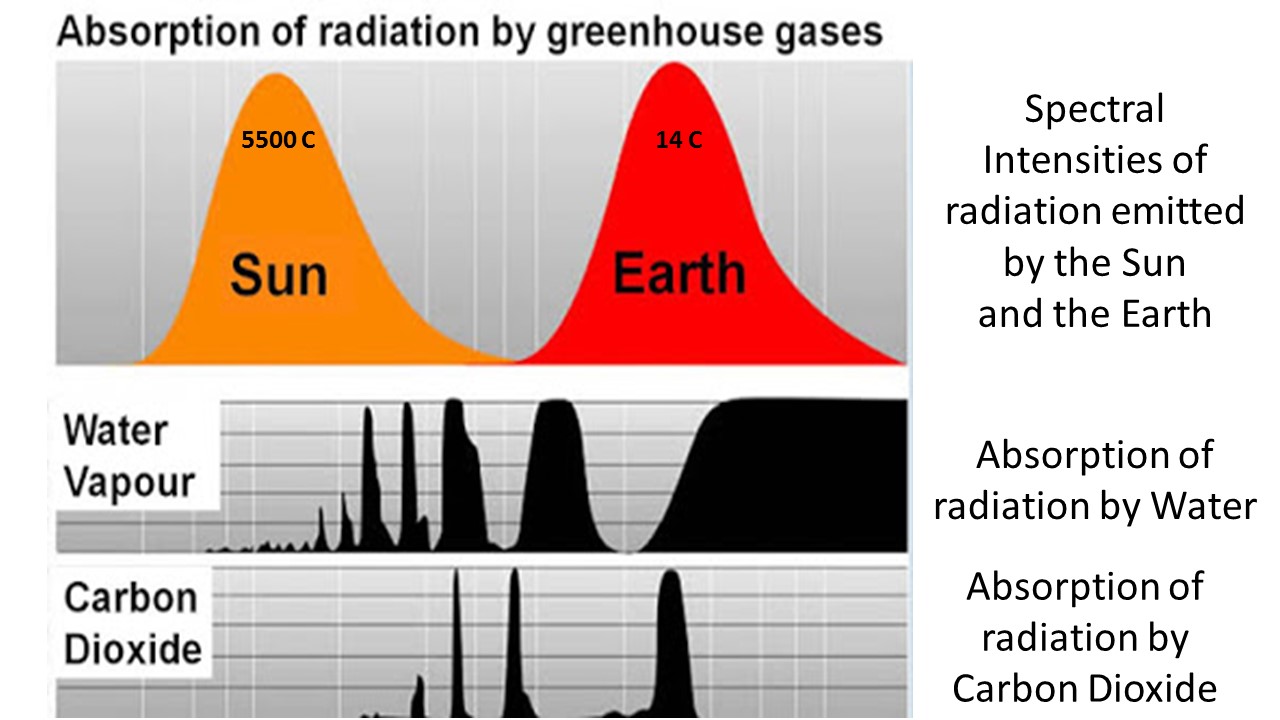

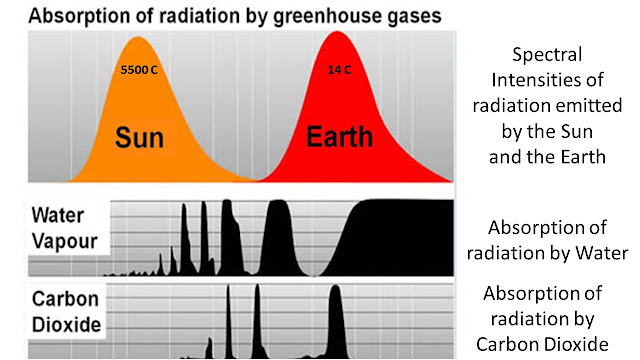

2.  More water vapour in the Arctic Atmosphere: As the temperatures in the Arctic have risen, more water vapour is present in the atmosphere.  Ice has very low vapour pressure and there is little water present in the atmosphere over areas covered with ice.  With ice melting into water, the amount of water vapour in the atmosphere will increase.  As it happens, water vapour is a potent greenhouse gas that is effective in absorbing the higher wavelength infrared spectrum emitted by the Earth and not absorbed by carbon dioxide. Higher moisture levels will thus trap more of the heat radiated from the Arctic and prevent it from escaping into space. Following two slides describe the potency of various greenhouse gases:

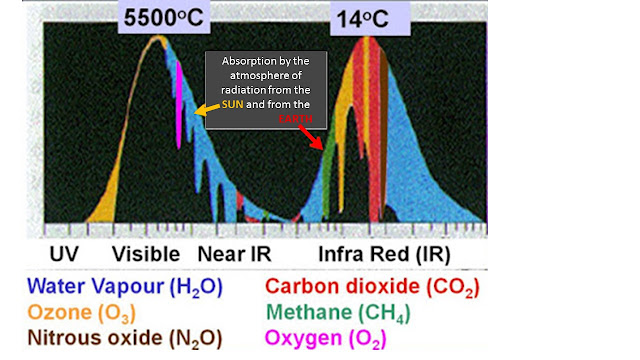

Increased amounts of water vapour and carbon di-oxide in the atmosphere also trap reflected energy.  Trapped energy goes directly into heating the atmosphere and not in evaporation (as is the case at lower latitudes).  This causes Arctic air temperature to increase faster than in the rest of the globe.
An interesting bye-product of reduced ice cover in the Arctic is the higher vapour pressure of water which can result in increased snowfall during the winter months.

3. Stronger Thunderstorms are Transporting More Energy to the Arctic:  Research at NASA points to the excess amount of energy that is being transported to the poles by large weather systems.  Even though the frequency of thunderstorms has not increased, they are stronger and bring lot more energy to the polar regions.   Obviously much more work is required to quantify this effect but it is felt that this may be quite important.

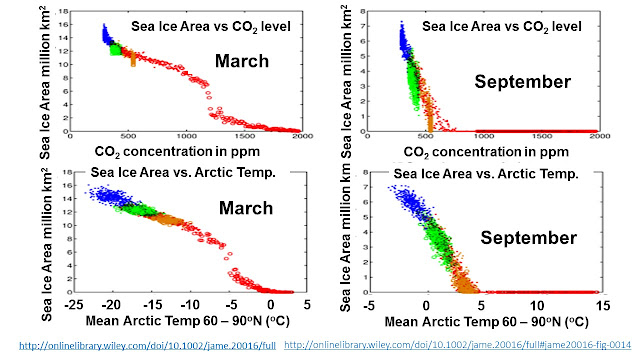

Future Evolution of Arctic Sea Ice Extent:  Max Plank Institute has modeled the evolution of Arctic sea ice area. The model finds that Arctic temperatures and sea-ice area depend directly on global carbon di-oxide concentration. Their results are shown in the next slide:
The summer ice cover is lowest in September and the model predicts that Arctic will be ice free when the mean temperatures in the 60 to 90 degree latitude North reach above 5 degrees centigrade and this might happen for CO2 concentrations of 700 ppm.  The winter ice cover will vanish for CO2 concentration levels of 1500 ppm or higher.

Some consequences of above-normal Arctic Warming:

Arctic Circle climate is an integral part of the global climate system and the more extreme changes in the Arctic Circle will affect the climate of the world.  The impact of a warming Arctic has been the subject of an extensive report that is available on the Web.  I refer you to the report for a detailed (146 pages) analysis.  In the following I discuss a few points only.

Changes in northern hemisphere climate:  Arctic temperatures are rising at least twice as fast as other regions of the Earth and causing accelerated loss of Arctic sea ice  - in extent, thickness and age.  This will influence atmospheric and ocean circulations and weather, particularly in the northern hemisphere.  The temperature and rainfall patterns shall change, and their effect on forests, agriculture, water supplies etc will be significant.

Gulf Stream:  Gulf stream brings warm saline water from the tropics to the north. Melting ice and increased river run-offs have added large quantities of freshwater to the North Atlantic ocean.  This reduces the salinity and hence the density of sea water.  It is likely that this will affect the ocean circulation pattern with major impact on the climate of regional areas - for example - Gulf Stream might change course or stop completely ushering severely cold temperatures to northern European countries.

Permafrost: For thousands of years, permafrost (frozen soil) and wetlands in high northern latitudes have stored vast amounts of carbon - they cover 9% of the land area but contain 25 to 50% of world's organic carbon.  With warmer temperatures, permafrost will start to thaw and release carbon into the atmosphere as carbon dioxide and methane - two potent greenhouse gases.  This can set up a positive feedback loop and contribute significantly to an accelerated global warming.  Most climate models do not include permafrost thawing in their calculations.
Permafrost's southern limit is expected to shift several hundred kilometres by the end of this century.
Thawing of permafrost will weaken frozen coastal lines, increasing coastal erosion by the rising sea-levels.
Vegetation will start to cover thawing permafrost in due course - it will be less reflective and increase warming.  However, new vegetation will absorb more carbon di-oxide from the atmosphere counteracting some of the warming.

Thawing of the permafrost will change the hard solid ground to soft marshy land.  Buildings, bridges, roads built in the region will be destabilized and will have to be redesigned and replaced.  This will be disruptive for the locals and very expensive.

Ocean Acidity:  Oceans have been absorbing vast quantities of carbon dioxide from the atmosphere and acidity of the oceans has increased by 30% in the past 100 years. Cold oceans absorb more carbon dioxide - Arctic is acidifying twice as fast as the rest of the oceans.  Acidic water dissolves calcium carbonate, and therefore interferes with the development of coral reefs and the shells of see animals like oysters, crabs, snails, plankton etc.

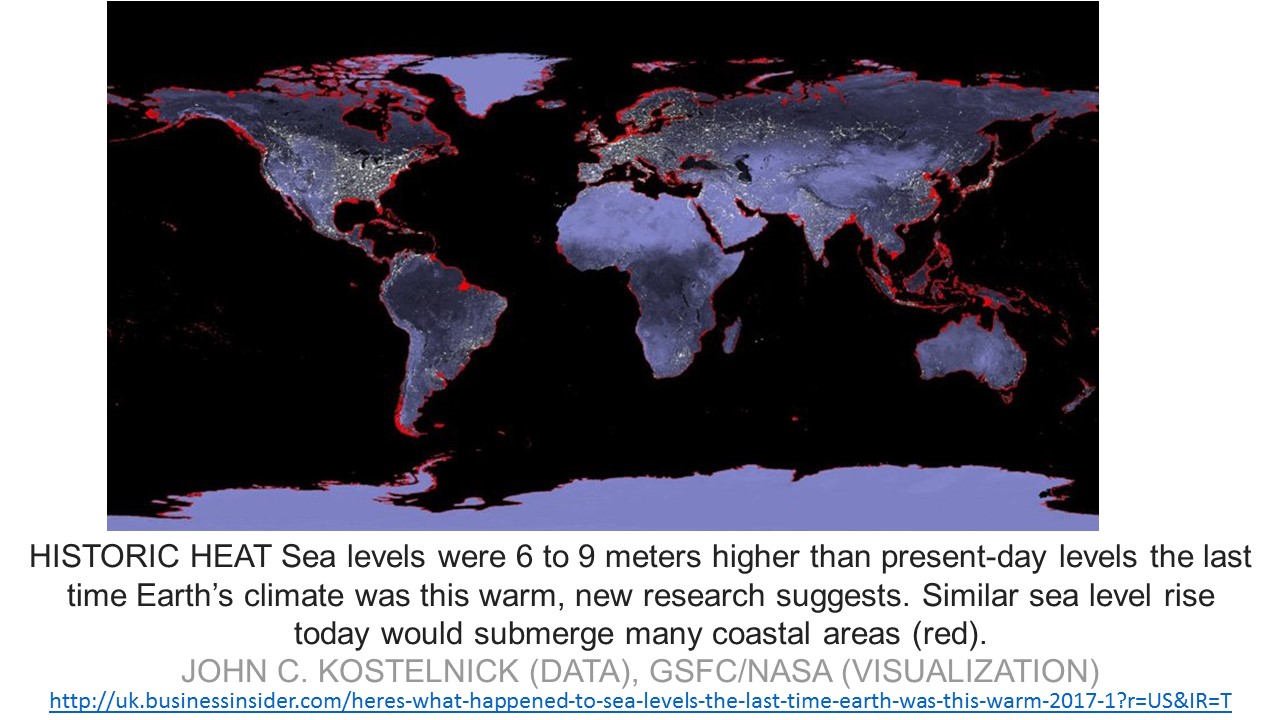

Sea-level Rise:  Melting of arctic sea ice does not affect sea levels.   However, ice sheets in Greenland have been losing water at increasingly higher rates.  Historically, when the temperatures were as warm as they are today, sea levels had settled at much higher levels than at present.  I hope to look at this question in a future publication but the following slide shows the effect on coastal areas due to the expected sea level rise sometime in the future.  If global warming continues unabated then the situation could be much worse.



Sunday, 15 January 2017

The Third (+ Fourth ??) Industrial (Technological) Revolution; Globalization, Global Poverty & Inequality

Blog Index - Blogger Profile      Category - Self-indulgence

Technology is the application of science to solve a problem, create tools and processes.

Technology is the purposeful application of information in the design, production and utilization of goods and services, and in the organization of human activities.

(please click on a slide to view its full page image -
 Esc to return to main text)

Humans have used technology for over 5000 years - I would even say that advancements in technology have always benefited the way we live. Energy (a system's ability to perform work) has been the key in this regard.  A gallon of petrol costs £5 and provides energy equivalent to 500 hours of human labour worth £3700.  In other words, the amount of work that oil performs for you is equivalent to having hundreds of slaves working round the clock! Even the kings did not have the comfortable & luxurious life style that an average middle class family now enjoys - thanks to technological breakthroughs that made all this possible.

Technology evolves incrementally except on occasions when some breakthrough (generally, the availability of a cheaper & more efficient source of energy) engenders a quantum shift in our capabilities. This can create a big improvement in the way we live - an industrial revolution (IR). For example:

1784:  Water and steam power helped to mechanize production - First IR

1870:  Electric power made mass production possible  - Second IR

1970:  Electronics, information technology allowed automated production  - Third IR

Now, a fourth Industrial Revolution is building on the third.  It is characterized by a fusion of the physical, digital and biological technologies. The fourth IR will fundamentally alter the way we live, work and relate to one another.  In its scale, scope and complexity, the transformation will be unlike anything humankind has experienced before. Technological capabilities are increasing exponentially - changes are happening at unprecedented speed throughout the world - changes that are disrupting all industries in every respect. Transport, communications, efficiency and productivity in manufacturing will benefit and steer economic growth.
All aspects of peoples' personal lives will be impacted seriously with unforeseen consequences for privacy, identity etc.
Automation will disrupt the job market, many occupations will go as robots can perform them better - we already see industrial robots becoming more ubiquitous - but the changes in the next few decades will be far-reaching.
Our civilization has a big task ahead of adjustment to the looming challenges.

Who will gain from the technological advances?
Will the richest in society grab all the benefits as they are best placed to exploit the situation?
Will inequality increase in the world?
Will the poor be looked after and their standard of living improve?

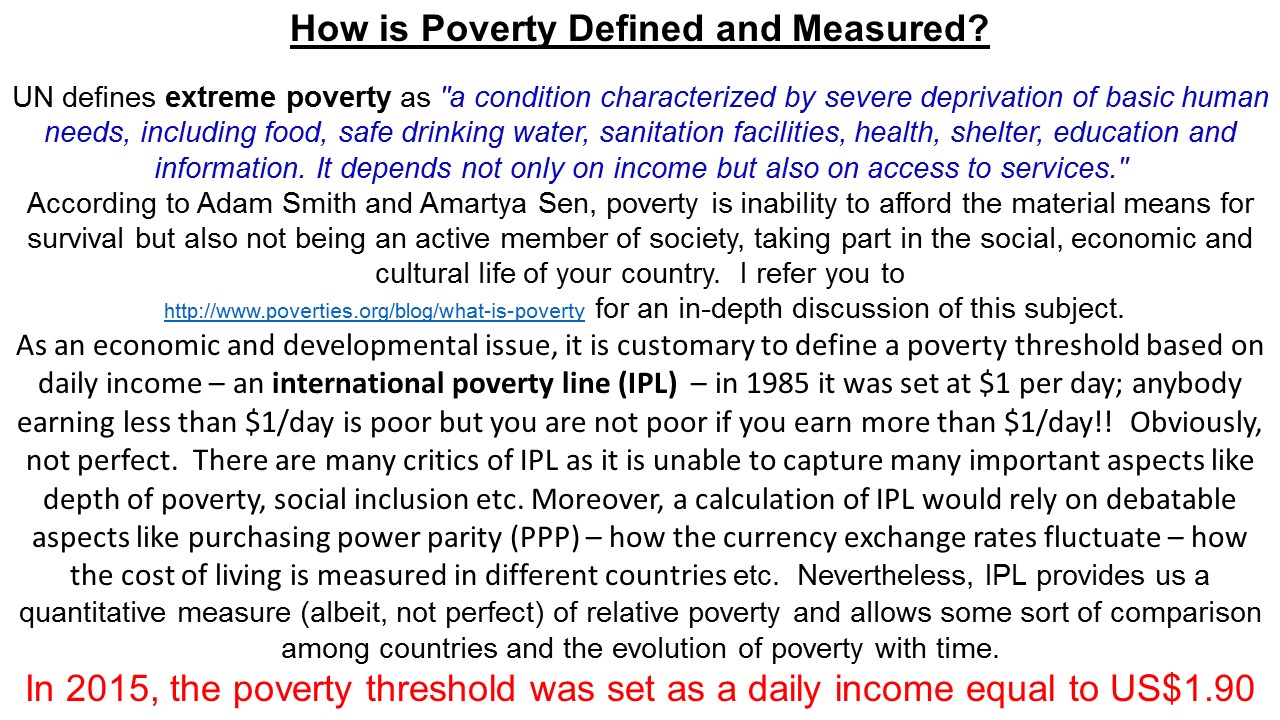

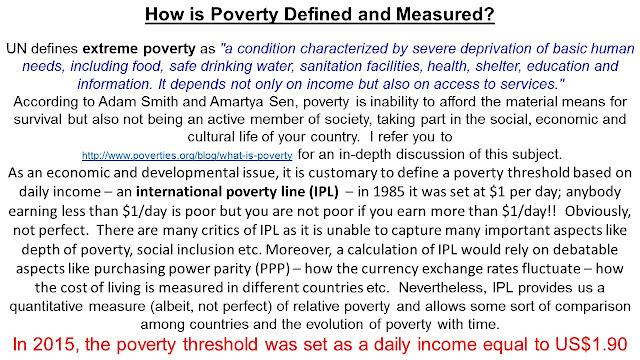

We do not know the answers. In the rest of this blog, I shall examine how things have changed over the past several decades and address the issue of global poverty and inequality.   In this endeavour, I have been guided by extensive data in reports from the World Economic Forum, World Bank and other prestigious institutions.  But first let us define what a benchmark for poverty is and how inequality may be understood.  Defining poverty and inequality is no mean task but let us try this in the following slides:

The third IR really made a difference.  Technology behind this IR made transportation of goods and communications exceedingly efficient.  Developing countries in Asia and Latin America could produce all the goods and provide lot of the services that the OECD countries wanted and they could do it rather inexpensively - the labour was cheap.  The result was that the period from 1970 onward saw a massive increase in manufacturing and services transferred to countries like China and India and others.  Globalization became established and benefited the indigenous populations in the developing countries. Their incomes rose and poverty levels came down.

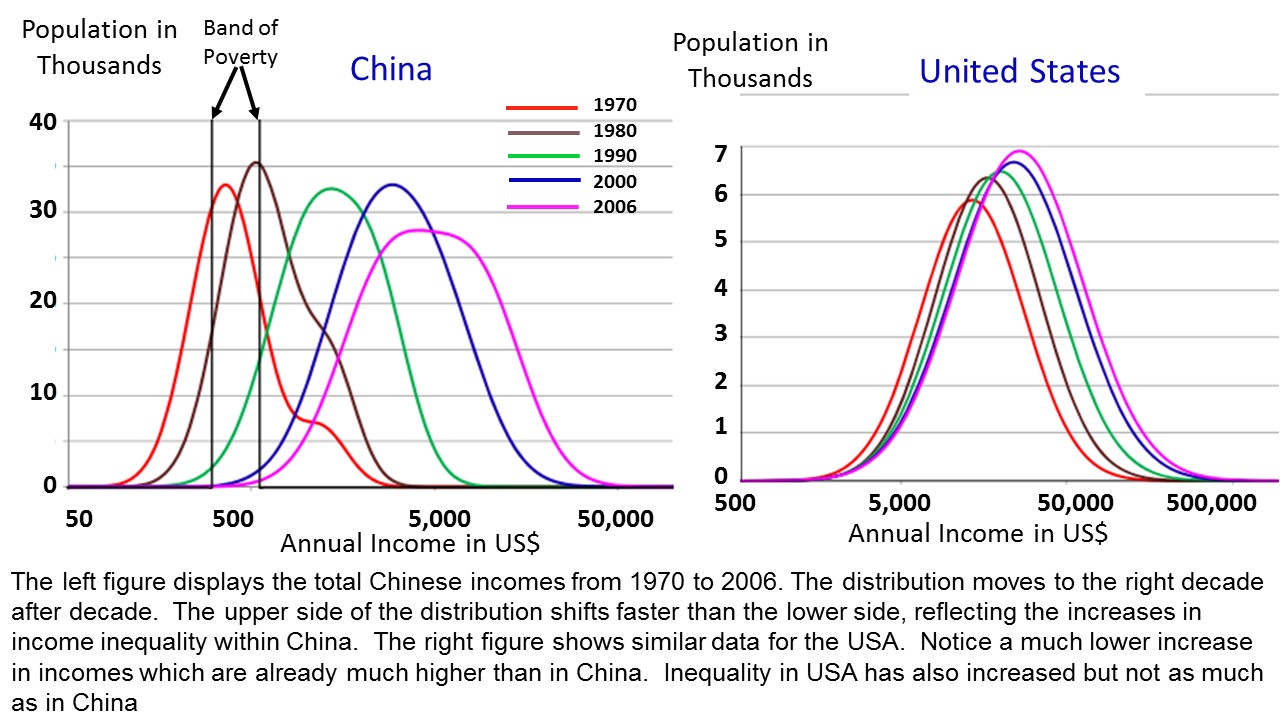

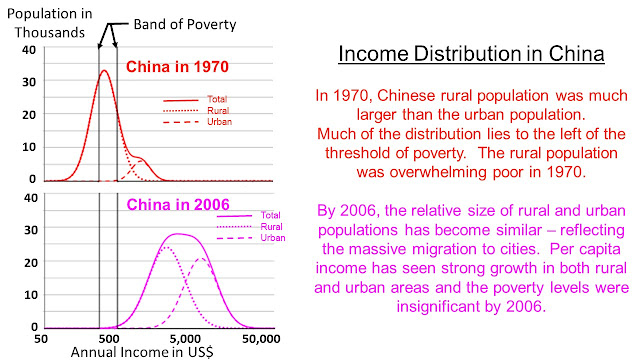

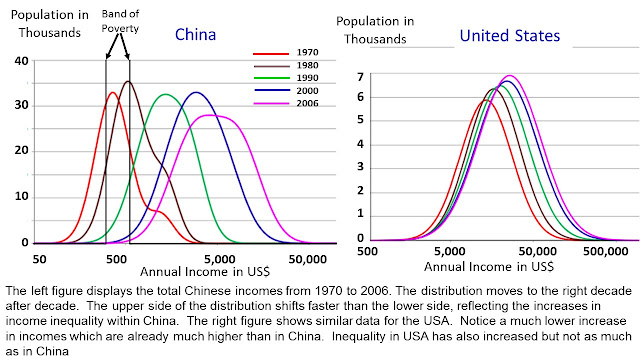

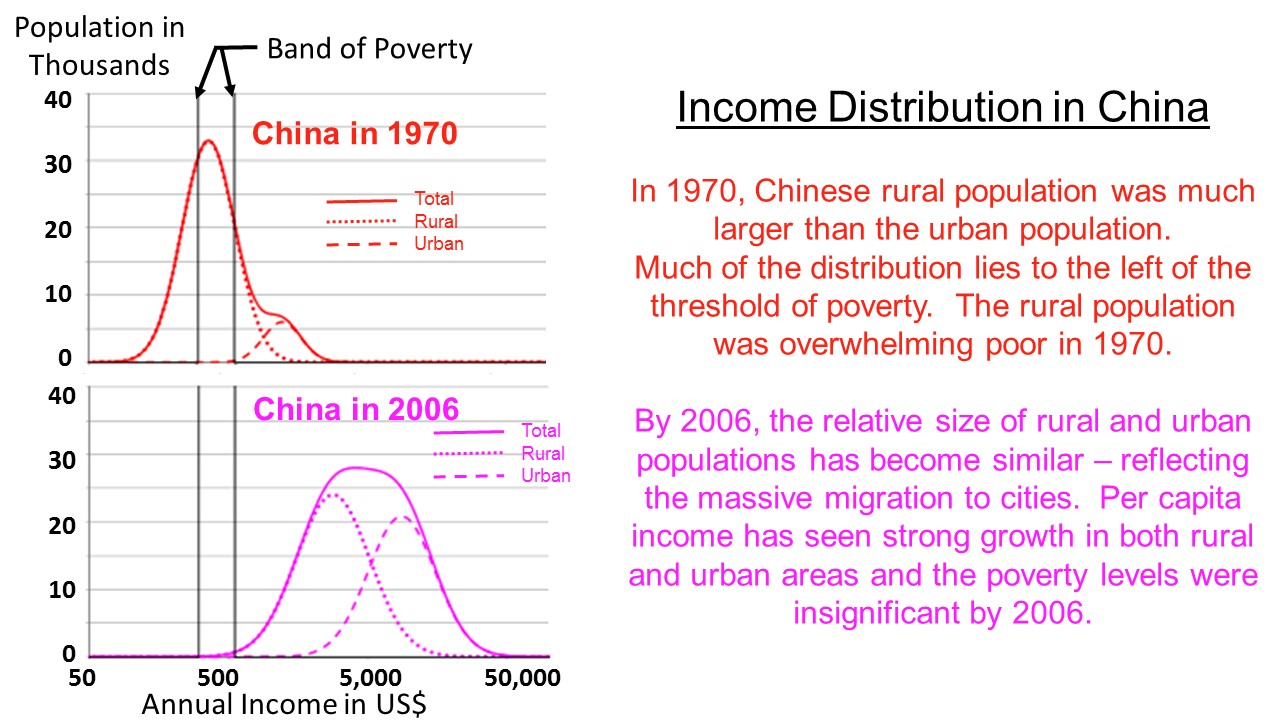

The following slides, adopted from Ref. show how income levels changed in China and the USA between 1970 and 2006:

The next two slides show how the world distribution of income has changed since 1970 and that the absolute number of poor people has been decreasing steadily over the years against the backdrop of a rising world population. This is mainly due to the large number of people taken out of poverty in China and India and neighbouring Asian-Pacific countries. In the slide, y-axis shows number of people.

It appears that since the onset of the third IR, globalization has been instrumental in decreasing poverty throughout the globe.  This is a positive outcome of technological advancements that have also helped to provide greater understanding of human health issues and tackling the food and water problems.  Much more needs to be done in this respect - particularly in the African continent where people have not benefited anywhere near to the same degree by globalization.  Of course, the industrial progress have had many negative impacts like global warming (climate change), increased pollution, mass migration, loss of biodiversity etc. These problems must be addressed with some urgency.

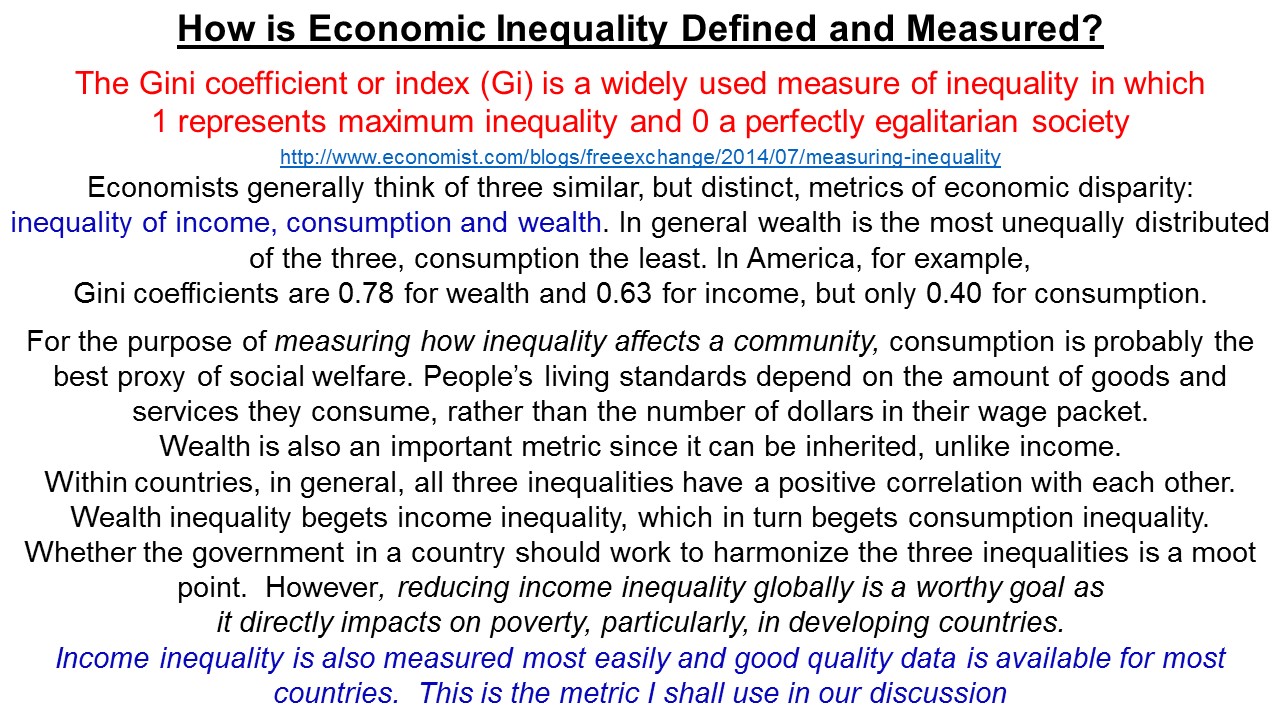

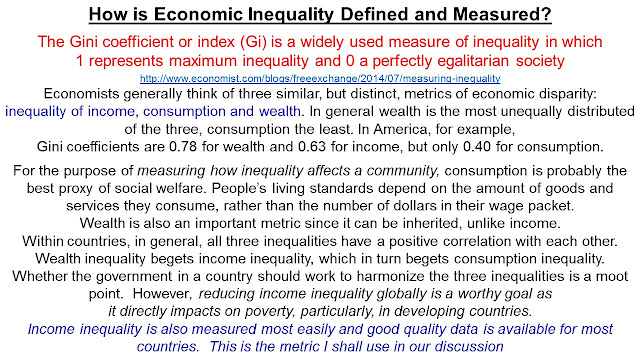

Returning to inequality, we are talking about economic inequality here, can one argue that reducing inequality should be a major goal of policy makers?  There does not appear to be a strong positive correlation between poverty (income levels) and inequality - rising incomes take people out of poverty but generally enhances inequality.  It is reasonable to suggest that inequality  would enhance political instability & social unrest; thus impacting negatively on economic growth.  On the other hand, inequality could spur more economic growth via higher incentives for wealthier people to make productive investments - as indeed most of the wealth is owned by a small percentage of the population.
OECD data show that historically there has been a negative correlation between inequality and economic growth within nations in Europe and the OECD countries in the Americas. Following slides look at the trend in inequality and demonstrate how unequal the world is:
The World Gini increased from 0.43 in 1820 to 0.61 in 1913. Since 1913, Gini has been creeping up and stands at 0.68 in 2005.

See Also:

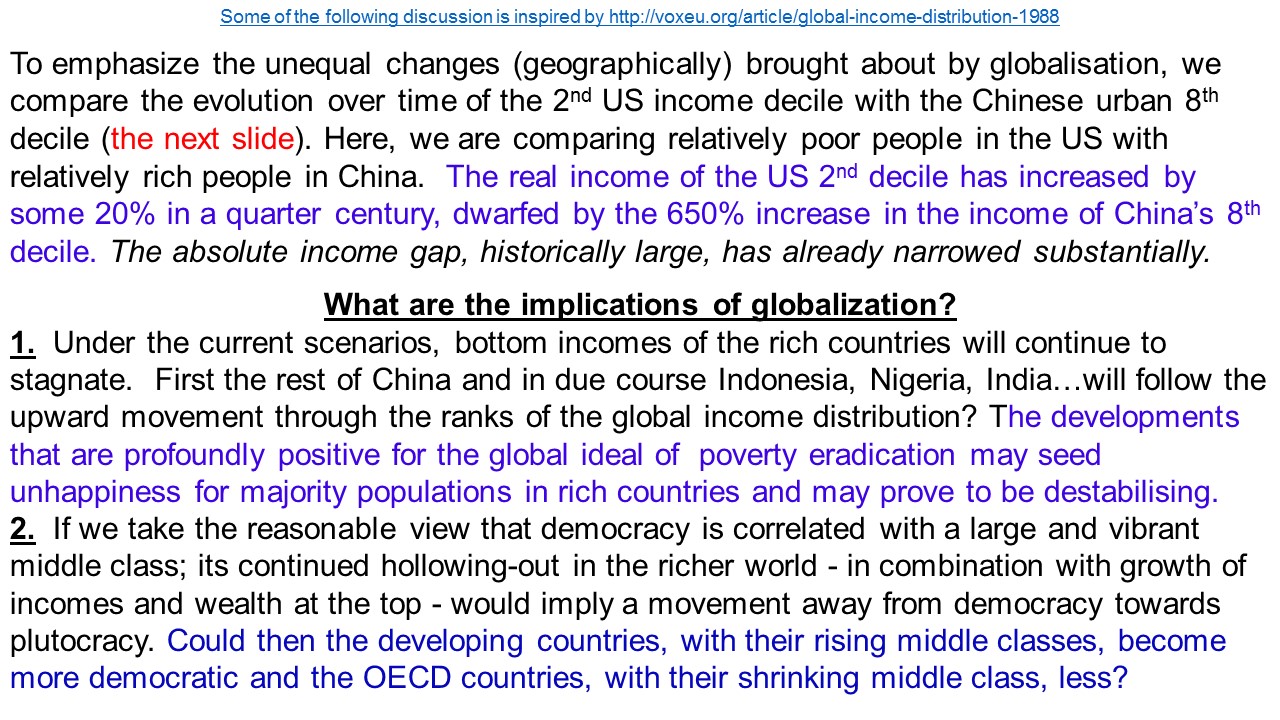

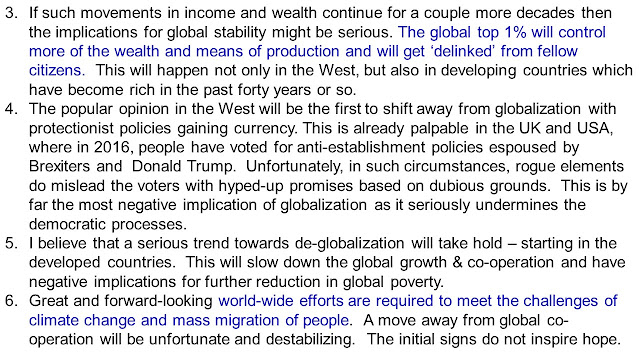

Unintended Consequenses of Globalization:  During the 3rd IR, good efficient transport (energy has been cheap) and communications have helped the rise of globalisation. Goods made in developing countries - supported by low wage rates - could be transported to consumers in the developed countries.  Out-sourcing of manufacturing and services has helped in reducing the poverty levels in developing countries. In this process, middle classes in the developed countries saw their jobs in manufacturing and servicing disappear causing stagnation of real wages and escalating job insecurity. The following slide shows  this remarkable situation over the period 1988 to 2008.

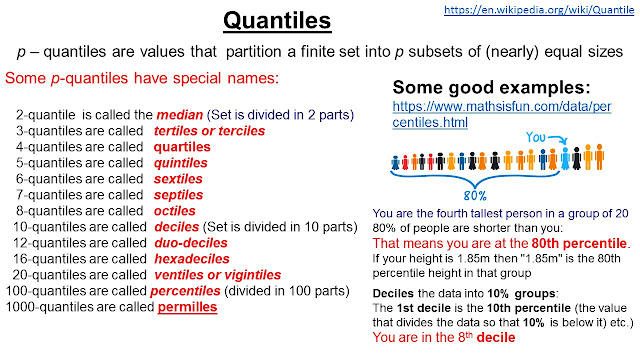

First, I explain the way data is generally broken into sub-divisions or quantiles:

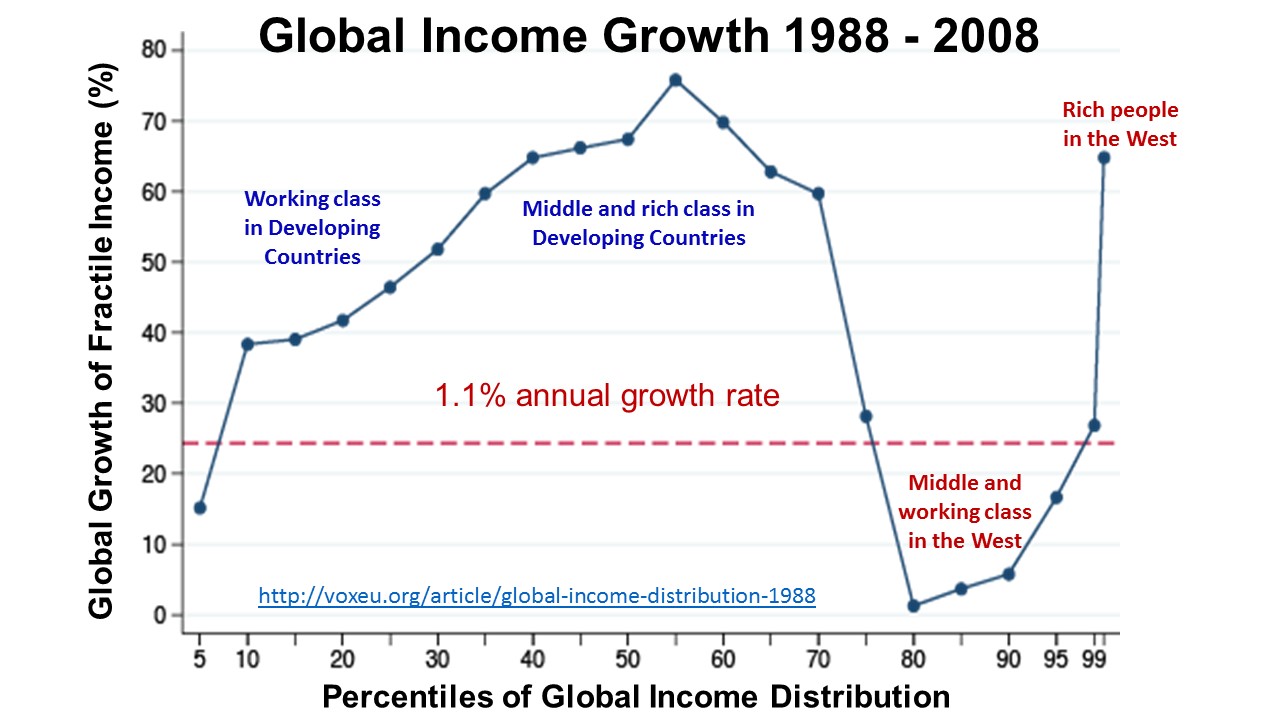

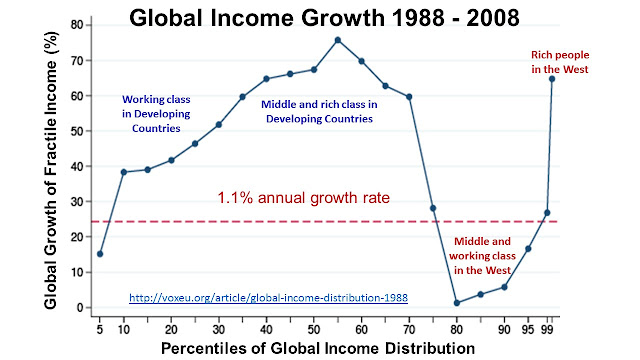

Global income growth is shown for the 20 income ventile groups (Global population is divided into 20 groups). The first ventile (0 to 5%) are the lowest income group; the second ventile (6 to 10%) is the next lowest group and so on. The 20th ventile (96 to 100%) is shown by dividing it into a quartile (96 to 99%) and a percentile (99 to 100%) to emphasize how much more the richest in the top 1% have gained.

The distribution shows that the groups around the 50th percentile made the largest gains, ~75%, in income growth. The global top 1% also increased their incomes by about 65%.  For the very poorest (0 to 5 percentile) and those around 80 to 90 percentiles, gains were negligible over the period of 20 years. Because the absolute income of the top 5% is much larger, they accounted for 44% of the increase in global income between 1988 and 2008.

People are apprehensive about job security and fear that automation/robotics will make a large fraction of jobs redundant. Of course, new job opportunities will appear.  This will require retraining which may be uncomfortable for many. In addition to automation, migration is also a big concern.  Migrant workers generally are younger, work harder and show more flexibility.  Under these circumstances, workers in the developed countries feel thtreatened and have started to react to the prevailing uncertainties.

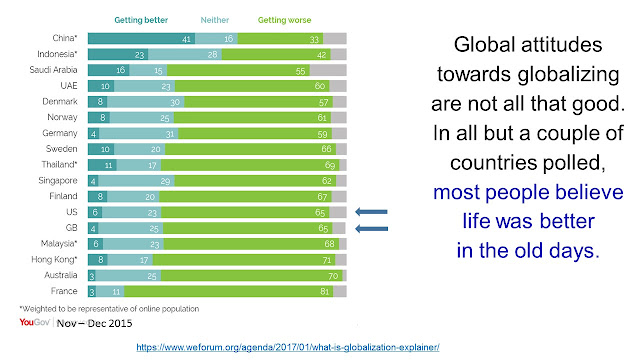

I am not surprised that the attitude towards globalization is not positive in most countries.  In a 2015 YouGov poll, majority of people thought that life was better in the old days.

The situation is much worse than described above

I have discussed the evolving economic situation in the world and tried to make sense of some recent political developments in the Western countries - notably UK and USA.  While it is true that economic climate drives many of the social and political trends in a country, it may no longer be the whole story.  Technological developments have infiltrated personal lives of citizens in a serious way; social media, smart phones, internet have been widely adopted and life without them is unimaginable.  Gadgets now play an important part in setting the cultural norms in a society.  What information is delivered to you is not under your control any more - the online service providers decide.  Who controls the service providers?  A handful of companies indeed.  These companies wield huge power by influencing the way we think.  Controlling information is subtle and is nothing like the historic way of doing so as practiced in totalitarian regimes. Your personal profile determines what information should be sent to you.

Final Word:  Economic poverty and inequality have received much attention by policy makers.  Extreme poverty is much reduced globally but inequality has been creeping up.  There is more to life than income and wealth.  After a certain stage, money loses its charm and people search for other attributes in the society - like social inclusion and fairness.  Happiness is not determined by GDP alone.
Taken to extreme, total equality (Gini = 0.0) will be most undesirable. The policymakers have a daunting task to first decide on the parameters that make life fulfilling and then devise policies to achieve those goals.

Love to hear from you - write to ektalks@yahoo.co.uk
